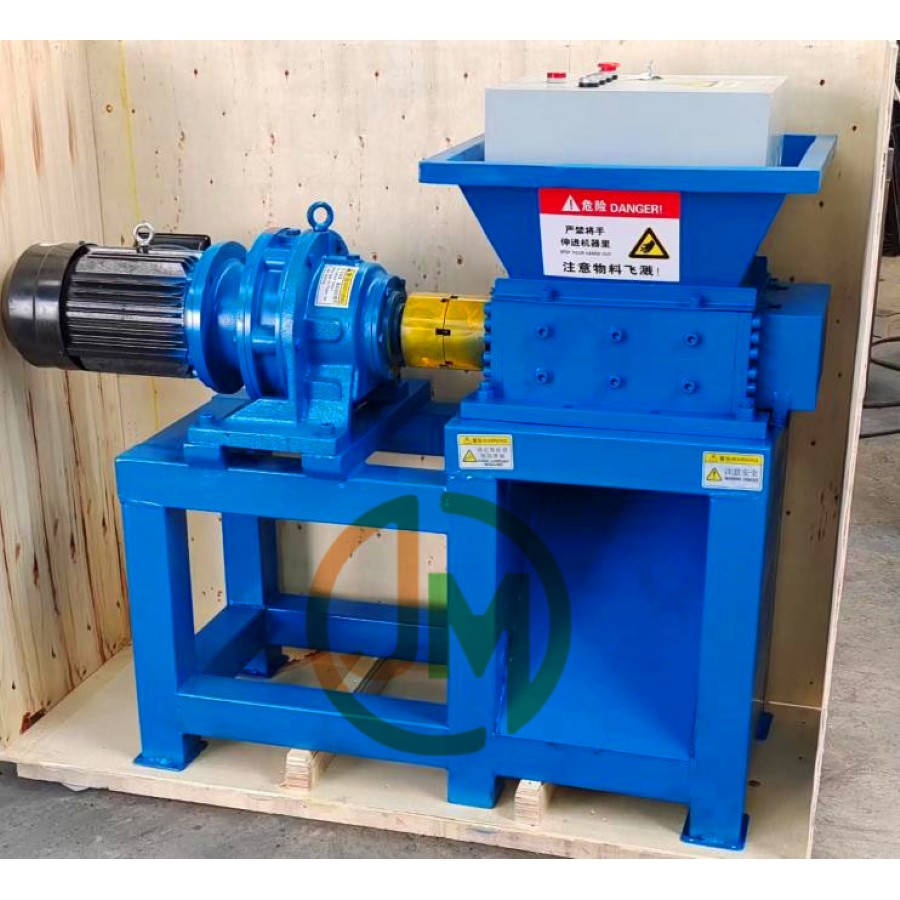

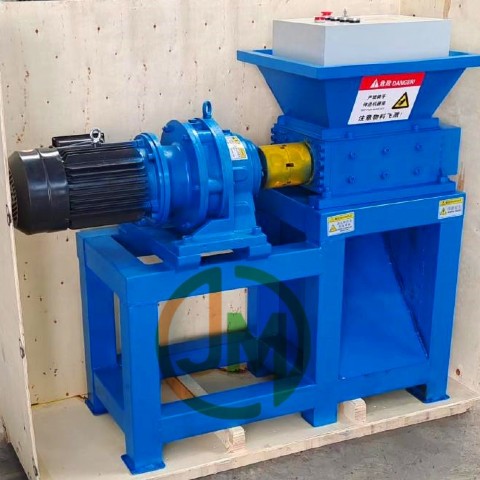

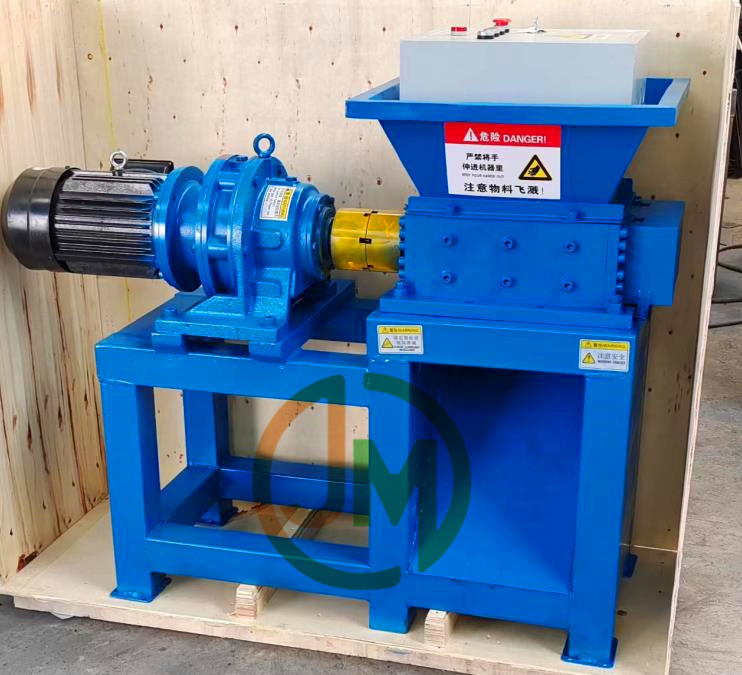

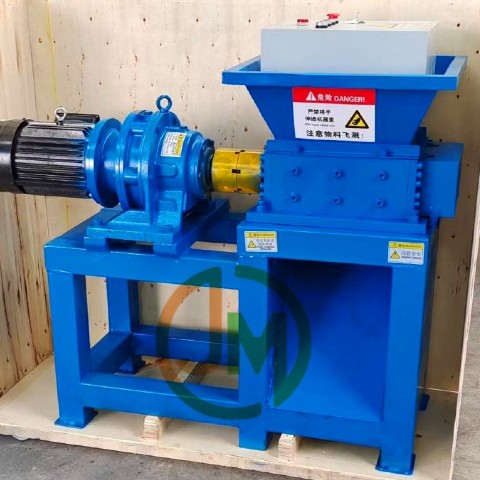

Mini mobile phone shredder is specially used to shred phones into pieces, also named e-waste shredder, it belongs to double shaft shredder (two shaft shredder). According to different waste materials, it includes: electronic trash shredder, electric waste shredder, PCB shredder, copper wire shredder, electric wire shredder, TV shredder, computer shredder, mobile phone shredder, refrigerator shredder, washing machine shredder, electric cooker shredder, air conditioner shredder, and so on.
The main working parts of the two shaft shredder is a pair of relatively rotating rollers, which are equipped with helical gear cutters. When the material enters the machine, it is torn and sheared by high hardness wear-resistant material with staggered rotation, and then split, crushed into smaller size, which is forcibly discharged.
1.Heavy removable blade, high-efficient crushing rate, knife made by special material, firm and long-life.
2.Thick frame can resist high torque firmly.
3.Low speed,big torque,low noise,less dust.
4.Easy adjustment,low maintenance fee and durable.
5.Knife thickness and blade quantity depend on different material.
Technical data for different models twin shaft shredder | |||||
Model
| Knife Size (mm) | Power（kw） | Capacity（t/h） | Machine Size L*W*H（m） | Weight (ton) |
600（6-8teeth） | Φ200×20 | 11×2 | 0.5-0.8 | 2.6×1×2.1 | 2 |
Φ220×20 | 11×2 | 0.6-1 | 2.6×1.1×2.1 | 2.2 | |
800 （6-12teeth） | Φ300×20 | 15×2 | 0.8-1.2 | 3×1.2×2.2 | 3 |
Φ300×30 | 18.5×2 | 1-1.5 | 3×1.2×2.2 | 3.5 | |
Φ300×40 | 22×2 | 1.5-2 | 3×1.2×2.2 | 5 | |
1000 （6-12teeth） | Φ300×30 | 30×2 | 1.5-2 | 3.4×1.25×2.2 | 6 |
Φ300×40 | 37×2 | 1.8-2.5 | 3.4×1.25×2.2 | 6.3 | |
Φ400×40 | 37×2 | 2-2.5 | 3.4×1.25×2.2 | 6.5 | |
1200 （6-18teeth） | Φ300×40 | 45×2 | 2.5-3 | 3.8×1.25×2.2 | 8 |
Φ400×40 | 45×2 | 2.8-3.3 | 3.8×1.25×2.2 | 8.5 | |
Φ500×40 | 55×2 | 3-3.5 | 3.8×1.25×2.2 | 9 | |
