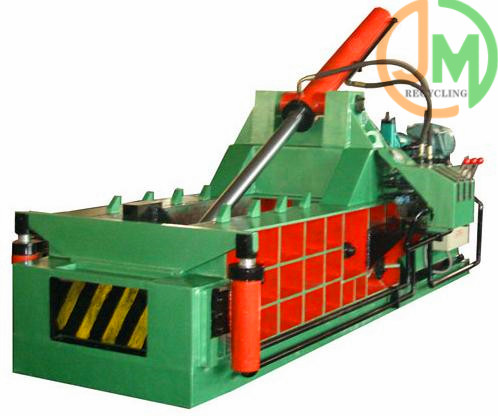

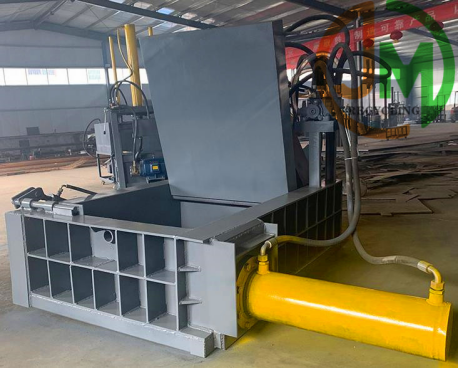

Hydraulic metal baler is also named scrap metal baling machine,widely used in steel plants, reclamation, processing industry and nonferrous &ferrous metal refining industry to press metal scraps (steel, copper, aluminum, stainless steel, oil barrels, discarded automobiles) into acceptable furnace charges (shapes: cuboid; cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Features:
1) Hydraulic drive,PLC or hand valve control
2) No need for foot screws,no need to install
3) Integral design, easy to operate
After Baling
Model | Feeding Box Size (mm) | Bale Size (cm) | Cycle Time (s) | Power (kw) |
Y81-80 | 1200*600*400 | 20*20 | 100 | 11 |
Y81-125 | 1200*800*500 | 30*30 | 100 | 15 |
Y81-135 | 1200*1000*600 | 30*30 | 110 | 18.5 |
Y81-160 | 1200*1000*600 | 35*35 | 110 | 18.5 |
Y81-160 | 1600*1200*800 | 40*40 | 130 | 22 |
Y81-200 | 1600*1200*800 | 50*50 | 140 | 22+15 |
Y81-250 | 2000*1750*1000 | 50*50 | 150 | 44 |
Y81-315 | 2500*2000*1200 | 60*60 | 160 | 60 |
Y81-400 | 3000*2500*1200 | 60*60 | 170 | 90 |
