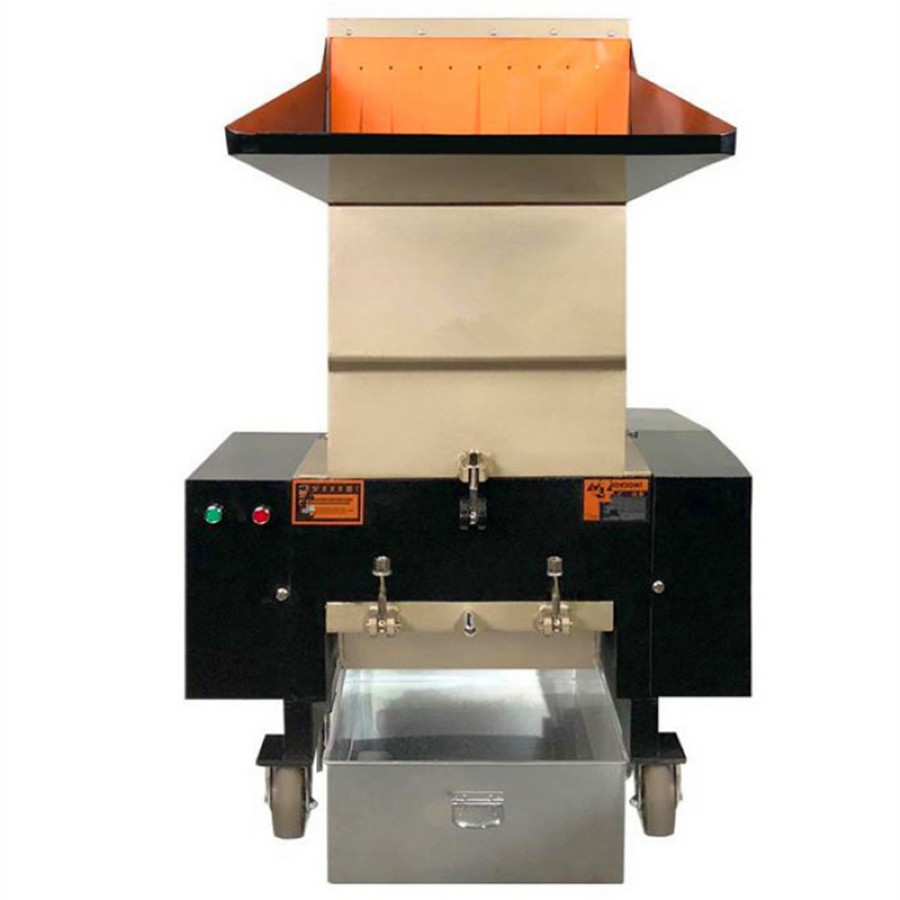

Movable Plastic Crusher

Movable Plastic Crusher

crushing plastic waste into pieces
Share this or chat online.

Details

Movable Plastic Crusher is specially used to crush plastic waste into small pieces for further process.


Plastic Crusher machine is a high-speed operating machine. The materials entered from feed hopper to crushing chamber and crushed by utilizing the rotating impact of revolving force and simultaneous shearing of fixed force and moving force. Different grain sizes are available by changing sifting screen with holes in different sizes.



Advantages of the crusher:

1) Simple structure, compact size, light self weight and less unit product power consumption;
2) The front and back walls of crushing room use double-layer sound-proof with low noise;
3) Steady movement, small vibration, easy to operate;
4) with strong cutting force, High productivity, big crushing ratio and uniform fragment size
5) Inlet hopper, crushing room and screening bucket is separated, and easy to load and unload;
6) Special design for crushing room, no material skip, large feed inlet and easy to charge;

Technical data for plastic crusher

Model

PC-200

PC-300

PC-400

PC-600

Power

(kw)

4

5.5

7.5

15

Chamber size (mm)

250*200

310*210

405*250

605x315

Output (kg/h)

100-200

200-300

300-450

500-600

Size

(m)

0.85*0.62*1.1

1.22*0.72*1.20

1.34*0.87*1.45

1.73*1.16*1.87

Weight

(kg)

280

350

450

890

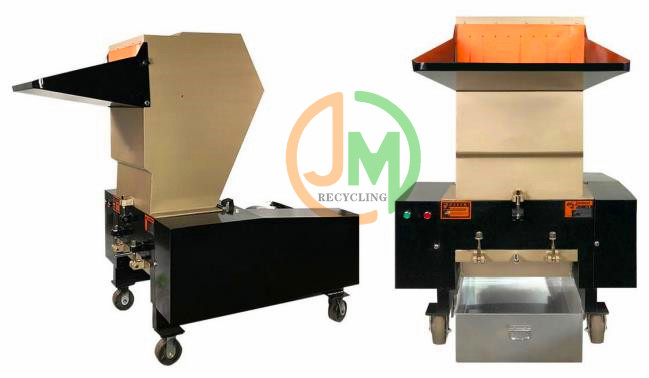

crusher (2).jpg

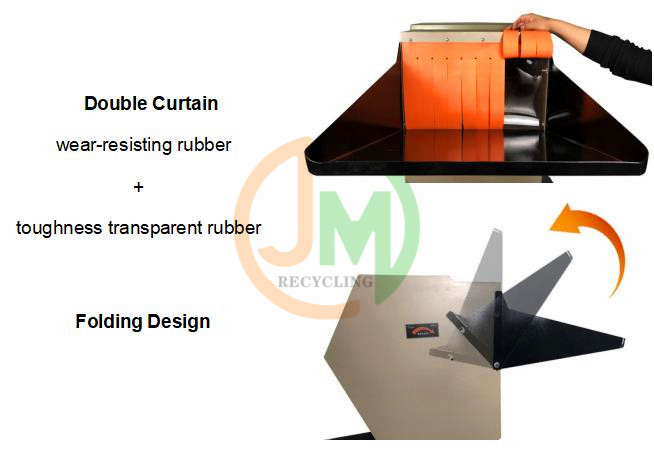

crusher (1).jpg

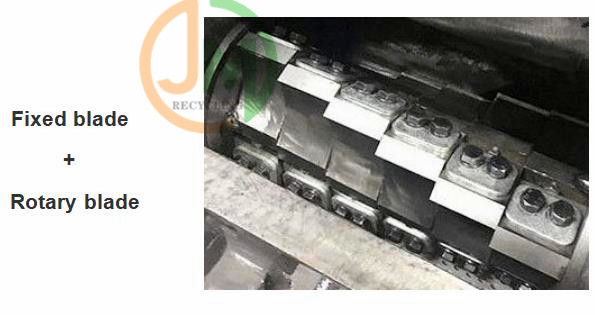

crusher (4).jpg

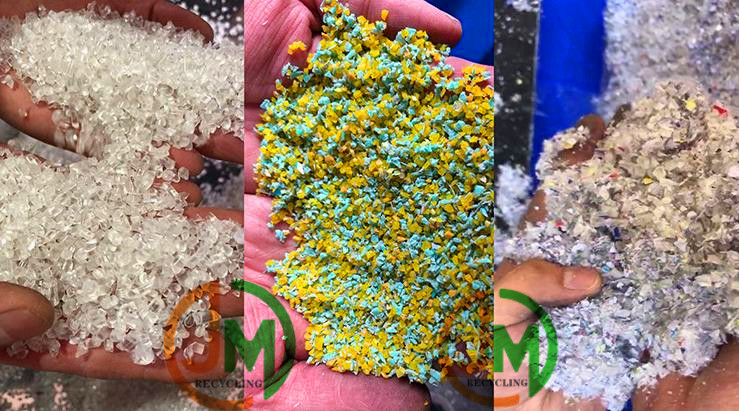

crusher (11).jpg
