Waste Bullet Shell Shredder

Waste Bullet Shell Shredder

shred the waste bullet shell into pieces
Share this or chat online.

Details

Double Shaft Scrap Ammunition Cartridge Cases Shredder Waste Bullet Shell Shredder Machine is specially used to shred bullet shell into pieces, also named bullet case shredder, it belongs to two shaft shredder.

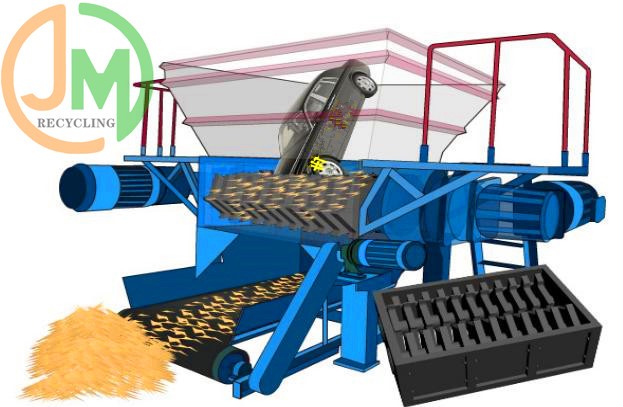

The main working parts of the two shaft shredder is a pair of relatively rotating rollers, which are equipped with helical gear cutters. When the material enters the machine, it is torn and sheared by high hardness wear-resistant material with staggered rotation, and then split, crushed into smaller size, which is forcibly discharged.



Advantage of double shaft shredder:

1.Heavy removable blade, high-efficient crushing rate, knife made by special material, firm and long-life.

2.Thick frame can resist high torque firmly.

3.Low speed,big torque,low noise,less dust.

4.Easy adjustment,low maintenance fee and durable.

5.Knife thickness and blade quantity depend on different material.

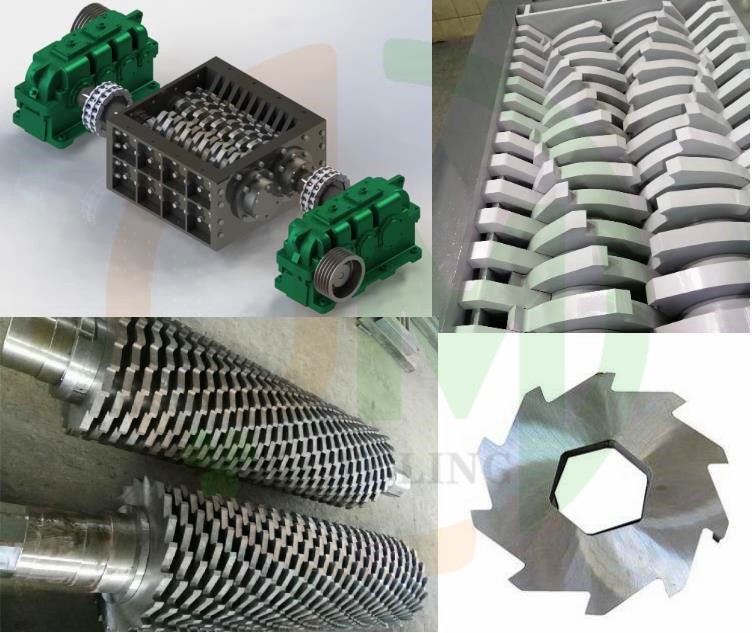

Double shaft shredder core part :



Materials shredded before vs after:


Technical data for different models twin shaft   shredder



Model



Knife Size (mm)

Power(kw)

Capacity(t/h)

Machine Size

L*W*H(m)

Weight

(ton)

100

Φ150×12

3

0.1-0.3

1.2x0.5x1.1

0.3

400

Φ200×20

5.5×2

0.3-0.6

1.9×0.6×1.5

1.5



800

(6-12teeth)

Φ300×20

15×2

0.8-1.2

3×1.2×2.2

3

Φ300×30

18.5×2

1-1.5

3×1.2×2.2

3.5

Φ300×40

22×2

1.5-2

3×1.2×2.2

5



1000

(6-12teeth)

Φ300×30

30×2

1.5-2

3.4×1.25×2.2

6

Φ300×40

37×2

1.8-2.5

3.4×1.25×2.2

6.3

Φ400×40

37×2

2-2.5

3.4×1.25×2.2

6.5
